Product Detail
Share to:
TJ-A800/B800/C800/D800
Product details

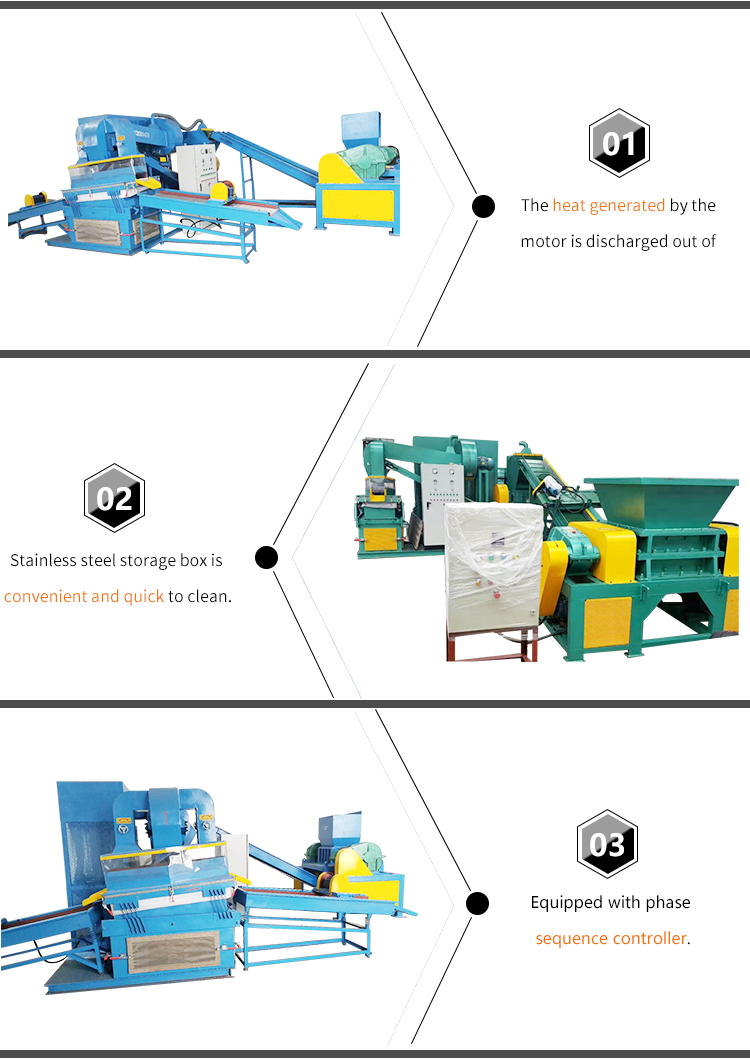

Fully automatic copper wire reccling machine TJ-800

Applicable scope and functions: it is for all kinds of waste wire which can not be processed by various stripping

machines, such as automobile power line, motorcycle line, electric bottle line, TV set, washing machine,

refrigerator, air conditioner, etc.Machine whole structure, customers can be connected to the production.

Automatic crushing. Feed. Dust absorption. Separation.Only one person to feed can be produced, advanced

dust collection device, dry separation, separated products can be sold directly.This machine is the most

advanced waste line separation equipment in China.

Function: control system :1)star delta starter cabinet; 2)Electric motor thermal protection device;

3)Delay start protection function; 4)automatic vibration control;  5)Control of wind frequency conversion device;

6)cooling circulation in the grinder; 7)function of magnetic separator.

Easy to operate, can be feeding, after the crushing processing, transport operations, dry separation.Copper and

plastic can be separated effectively, and the purpose of comprehensive utilization can be achieved.No dust, no

secondary pollution, high economic efficiency of recycling, and high speed of copper plastic recycling  treatment.

ModelTJ-D800TJ-C800TJ-B800TJ-A800
Processing diameter0.2-20mm0.2-20mm0.2-40mm0.2-40mm
Overall dimension(LxWxH)5*2.2*2.47*5*2.45*7*2.411*7*2.4
Machine weight4t5t6t7.5t
crusher machineMain motor power55kw55kw55kw55kw
shredder machineMotor Power22kw22kw
Feeding conveyor beltMotor Power0.75kw0.75kw0.75kw0.75kw
Feeding conveyor beltaf-ter crushingMotor Power0.75kw0.75kw0.75kw0.75kw
separation bedMotor Power3kw3kw3kw3kw
Separating bed blowerMotor Power5.5kw5.5kw5.5kw5.5kw
dust absorb 1 blowerMotor Power5.5kw5.5kw5.5kw5.5kw
dust absorb 2 blowerMotor Power2.2kw2.2kw2.2kw2.2kw
dust absorb 3 blowerMotor Power1.5kw1.5kw1.5kw1.5kw
magnetic separatorMotor Power0.75kw0.75kw0.75kw0.75kw
vibrating screen 1Motor Power0.75kw0.75kw0.75kw0.75kw
vibrating screen 2Motor Power0.75kw0.75kw0.75kw0.75kw
Cooling deviceMotor Power0.28kw0.28kw0.28kw0.28kw
Electrostatic feeding con-veyor beltMotor Power0.75kw0.75kw
Electrostatic separatorMotor Power12kw12kw
Total Motor Power76.73kw89.48kw98.73kw111.48kw
Production/h600kg-800kg600kg-800kg600kg-900kg600kg-900kg
