Product Detail
Share to:
TJ-A600/B600/C600/D600
Product details




ModelTJ-D600TJ-C600TJ-B600TJ-A600
Processing diameter0.2-20mm0.2-20mm0.2-40mm0.2-40mm
Overall dimension(LxWxH)4*5*2.358*5*2.355*6*2.359*5*2.35
Machine weight3t5t5.5t6.5t
crusher machineMain motor power30kw30kw30kw30kw
shredder machineMotor Power22kw22kw
Feeding conveyor beltMotor Power0.75kw0.75kw0.75kw0.75kw
Feeding conveyor beltafter crushingMotor Power0.75kw0.75kw0.75kw0.75kw
separation bedMotor Power1.1kw1.1kw1.1kw1.1kw
Separating bed blowerMotor Power3kw3kw3kw3kw
dust absorb 1 blowerMotor Power3kw3kw3kw3kw
dust absorb 2 blowerMotor Power2.2kw2.2kw2.2kw2.2kw
magnetic separatorMotor Power0.75kw0.75kw0.75kw0.75kw
vibrating screen 1Motor Power0.75kw0.75kw0.75kw0.75kw
vibrating screen 2Motor Power0.75kw0.75kw0.75kw0.75kw
Cooling deviceMotor Power0.18kw0.18kw0.18kw0.18kw
Electrostatic feeding conve-yor beltMotor Power0.75kw0.75kw
Electrostatic separatorMotor Power8kw8kw
Total Motor Power43.23kw51.98kw65.23kw73.98kw
Production/h300-400kg300-400kg400-500kg400-500kg

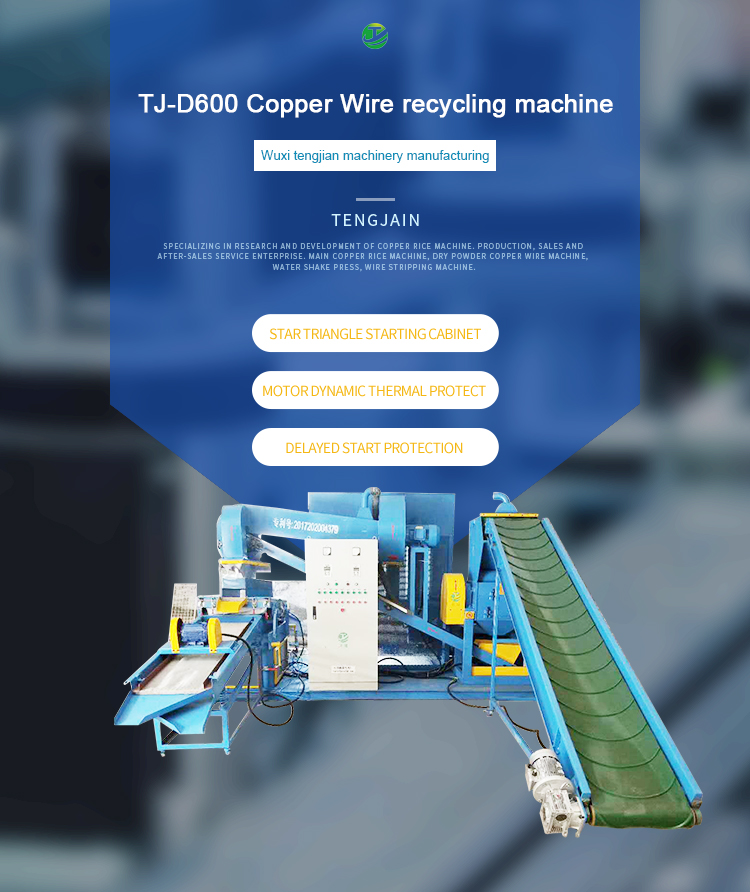

Fully automatic copper wire reccling machine TJ-600

Applicable scope and functions: it is for all kinds of waste wire which can not be processed by various stripping machines, such as automobile power line, motorcycle line, electric bottle line, TV set, washing machine, refrigerator, air conditioner, etc.Machine whole structure, customers can be connected to the production.Automatic crushing. Feed. Dust absorption. Separation.Only one person to feed can be produced, advanced dust collection device, dry separation, separated products can be sold directly.This machine is the most advanced waste line separation equipment in China.

Function: control system :1)star delta starter cabinet; 2)Electric motor thermal protection device; 3)Delay start protection function; 4)automatic vibration control; 5)Control of wind frequency conversion device;  6)cooling circulation in the grinder; 7)function of magnetic separator.

Easy to operate, can be feeding, after the crushing processing, transport operations, dry separation.Copper and plastic can be separated effectively, and the purpose of comprehensive utilization can be achieved.No dust, no secondary pollution, high economic efficiency of recycling, and high speed of copper plastic recycling treatment.
